16x4 Character LCD Displays from BLAZE
17.02.2025
Blaze manufactures a wide range of standard character LCD displays. The displays are available in 8x1, 8x2, 16x1, 16x2, 16x4, 20x1, 20x2, 20x4, 24x2, 40x2, 40x4 formats with 5x8 dot matrix symbols. The displays can be produced from different viewing angles.
Blaze offers various character font options, including English/Japanese, Western European, Eastern European, Scandinavian-European, Cyrillic (Russian), and Hebrew/Arabic to order.
Symbolic LCD displays can be used in industrial and consumer products, in particular in security equipment, medical devices, car and home audio systems, household appliances, toys, etc.

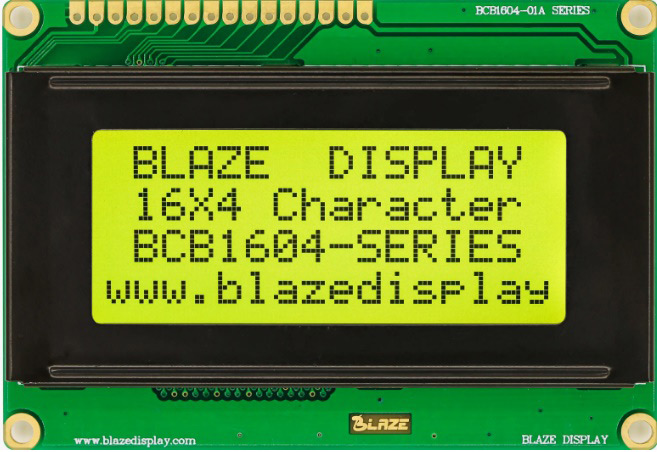

There are symbolic LCD displays from BLAZE series BCB1604-01A and BCB1604–01B in the CHIP and DIP warehouse.
Main parameters of the BCB1604-01A and BCB1604-01B series
- Character LCD display: 16x4 (5 x 8 dots)
- Built-in controller: ST7066U or similar
- Power supply: +3.3V / +5.0V
- Operating mode: 1/16 Duty, 1/5 BIAS
- Viewing direction: 6 a.m. / 12 p.m.
- Interface: 6800 4/8-bit parallel, optional SPI/I2C(RW1063 IC)
- Backlight (side LED): White / Green/ Blue / Yellow-green / RGB / Orange /Amber (depending on modification)
- Fonts: English-Russian

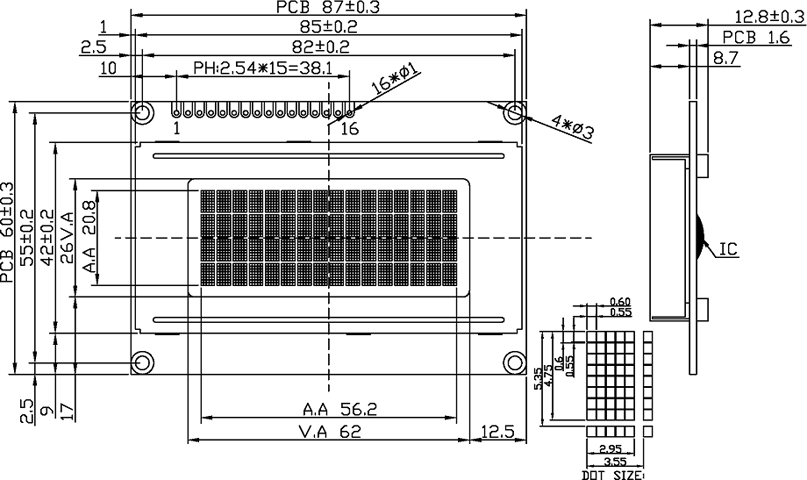

Display diagram 1A

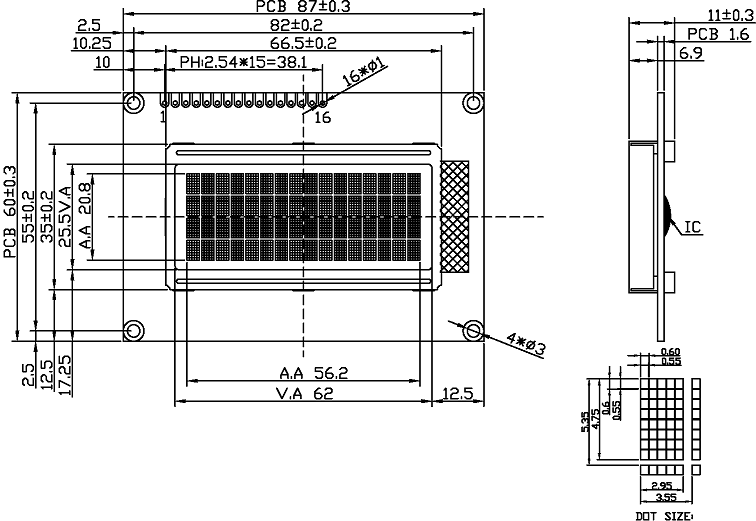

Display diagram 1B
Description of interfaces by pin
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VSS | Earth |
| 2 | VDD | Power for Logic |
| 3 | VO | Adjusting the contrast |
| 4 | RS | Data/Signal selection instructions |
| 5 | R/W | Reading/Recording signal selection |
| 6 | E | Signal activation |
| 7~14 | DB0~DB7 | Data transmission line |
| 15 | LED-A | Backlight power supply |
| 16 | LED-K | Grounding the backlight |
