Miniature Relay Finder Series 40

The CHIP and DIP warehouse has miniature relays for mounting PCB and 40 series sockets from Finder.
The range includes the following subtypes of the 40 series:

Type 40.31 Miniature relays 1CO 10A, 3.5 mm foot pitch for printed circuit boards and sockets of the 95 series.
Type 40.51 Miniature relays 1CO 10A, 5.0 mm foot pitch for printed circuit boards and sockets of the 95 series.

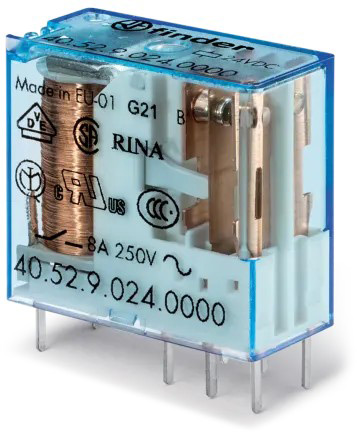

Type 40.52 Miniature relays 2CO 8A, 5.0 mm foot pitch for printed circuit boards and sockets of the 95 series.

Features of 40.31, 40.51, 40.52:

• Leg length 3.5mm for PCB versions
• The length of the legs is 5.3 mm for sockets
• DC coils (650 MW and 500 MW)
• A version with cadmium-free contacts is available.
• Insulation between coil and contacts is 8 mm, 6 kV (1.2/50 µs)
• Conforms to EN 60335-1 for incandescent lamps
• For use with 95 series sockets with push, screw or Push-in terminals for mounting on a 35 mm rail (EN 60715) or printed circuit board
• It is possible to use 99 series modules for coil indication and suppression of electromagnetic interference and 86.30 timer modules.
• Enclosure protection class: RT II – flux protection (standard option), RT III – moisture protection (optional)

Type 40.61 – 1-pole relays for mounting on printed circuit boards or in sockets of the 95 series.

Features:

• Foot pitch 5.0 mm
• PCB mounting or in 95 series sockets
• Leg length 3.5mm for PCB versions
• Conversion with contacts containing Cadmium is available
• Conforms to EN 60335-1 for incandescent lamps
• Enclosure protection class: RT II – flux protection (standard option), RT III – moisture protection (optional)
