Insulation Resistance Tester UNI-T UT5583
There is a new product from Uni-T in the CHIP and DIP warehouse - the UT5583 insulation resistance tester.

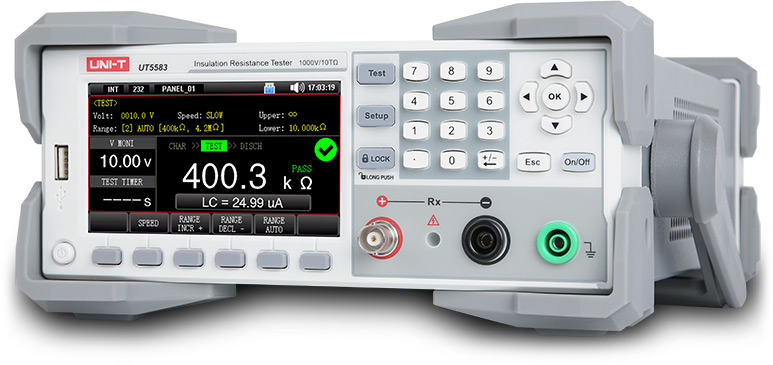

The UT5583 Insulation Resistance Tester is a compact desktop device with high performance and real-time operation capability. It can be used to measure insulation resistance and leakage current of various electronic components, equipment, dielectric materials, wires and cables.
The main parameters of UT5583
| Measured parameters | Insulation resistance, leakage current |
| Output voltage | Range 1V～1000V (DC) At a voltage ≥10V, the adjustment step is 1V At a voltage of <10V, the adjustment step is 0.1V |
| Voltage measurement accuracy | At a voltage≥10V, 1%±1V At voltage <10V, 10%±0.1V |
| Measuring range | Resistance: 10 kOhm～10 TOhm Current: 100 pA～250 uA |
| Testing speed | fast: 30 ms; medium: 100 ms; slow: 500 ms |
| Displaying results | Voltage, current, resistance, sorting result, audio and visual indication |
| Launch mode | Internal Trigger, Manual Trigger, External Trigger, Bus trigger |
| Screen | 4.3 inch FT-LCD |
| Protocols | SCPI, Modbus RTU |

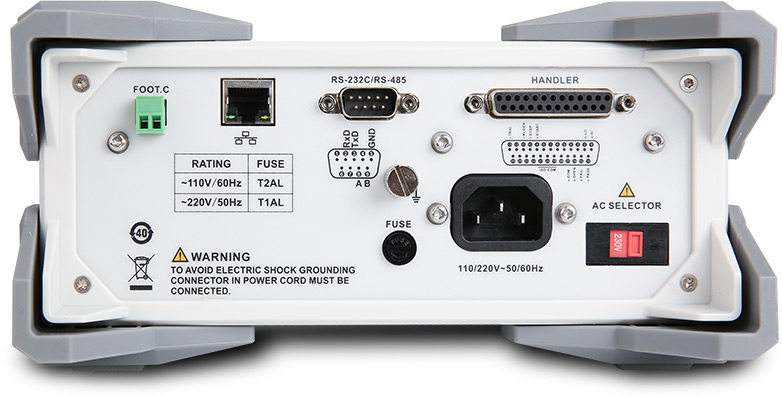

| Interfaces | RS232C, USB HOST (USB 128G support), LAN (RS485 option) |

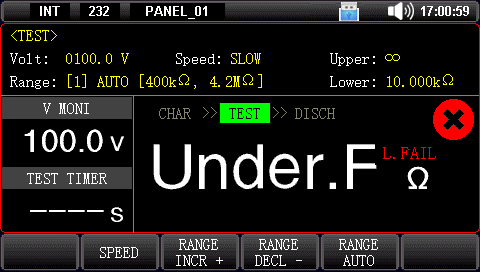

Automatic sorting with limit control function, provides sound and light alarms. When the measured resistance value exceeds the upper and lower limits of the range, the corresponding message will be displayed on the display.

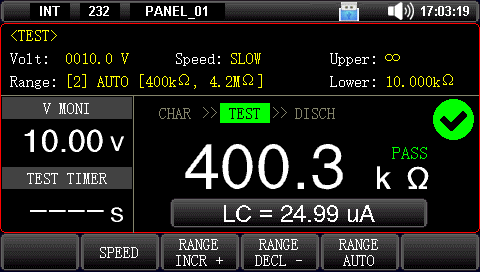

Resistance/current selection mode, simultaneous display of measured resistance and leakage current.

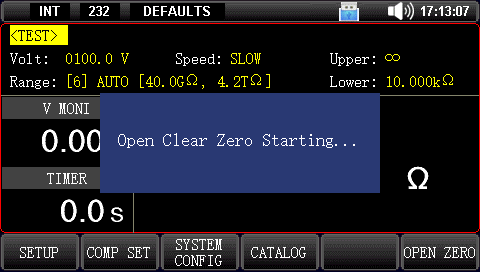

Provides a simple and easy-to-use open-loop calibration method.

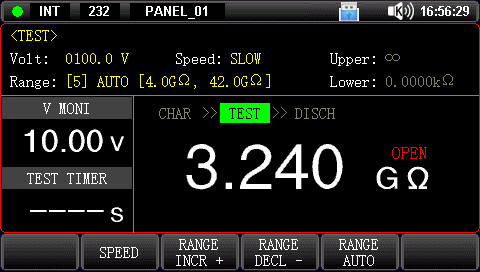

During the capacitive load test, an alarm is triggered when the test circuit is open.
