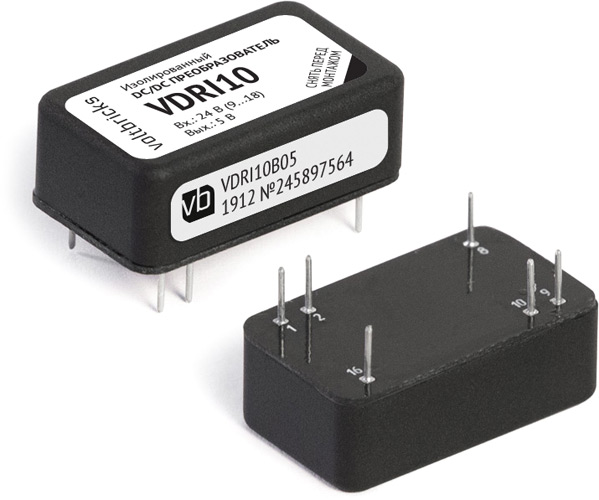

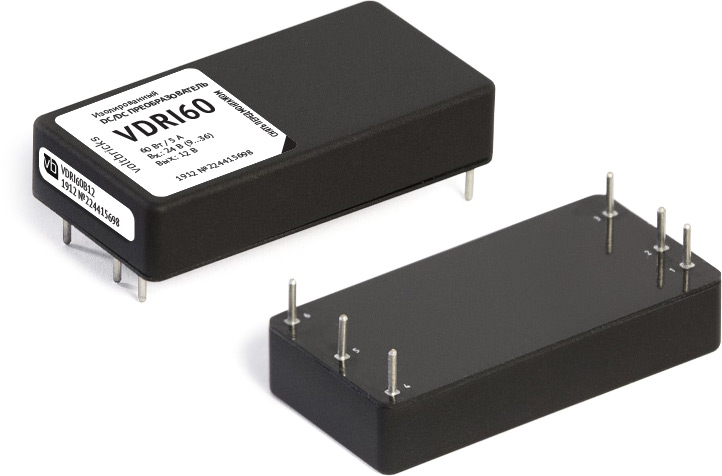

DC-DC converters of the VDRI series from Voltbricks
The VDRI series converters manufactured by VOLTBRICKS are unified DC/DC converters of increased reliability with extended service life for use in industrial equipment. The sources are manufactured in widely used DIP-16, DIP-24, 1x1 inch, 2x1 inch enclosures and have an output power in the range from 6 to 60 watts. They have a high efficiency of up to 92%, a low level of radio interference and output voltage ripples, and a competitive price in comparison with analogues from imported manufacturers.
The use of a sealing casing provides reliable protection from external environmental influences and allows use in a wide temperature range. During production, each batch of products is checked for compliance with regulatory electrical parameters, and is also subjected to special types of temperature and production tests.
Series Features
- The operating temperature is -40...+105°C;
- Low-profile design;
- Short circuit protection and overvoltage protection;
- Remote on/off;
- Typical efficiency up to 92%;
- Complete filling of the housing with a sealing compound.

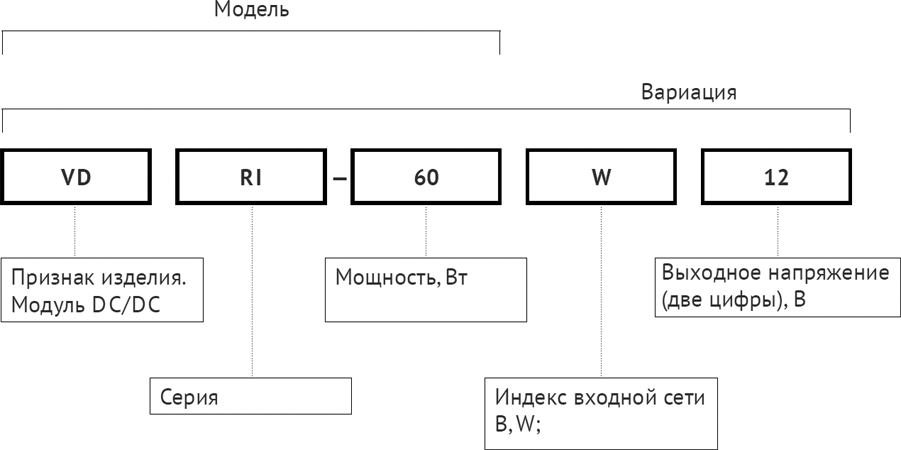

The legend of the modules
For more detailed technical specifications, see the Specifications for DC/DC Converters on the product page.
