VFD Series Electromagnetic Interference Filters from Voltbricks

The Russian company VOLTBRICKS was established in 2014 and today is an independent developer and manufacturer of modular power supplies and systems for various sectors of the civil industry.

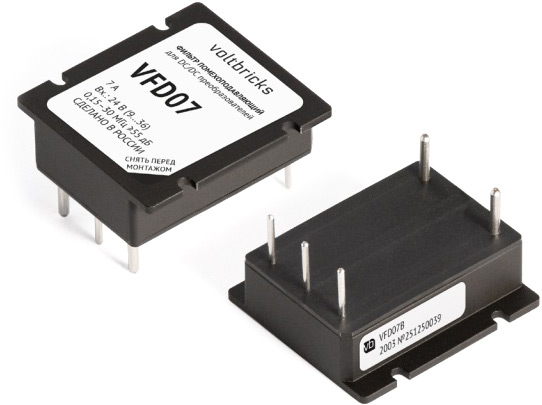

VFD series electromagnetic interference filters are designed to reduce and filter electromagnetic interference in the DC input and output circuits of pulsed DC/DC converters. The maximum pass-through current of the filters reaches 7 A. They are produced in metal low-profile heat-dissipating housings with a sealing compound filling of the elements. The wide operating temperature range -40...+105°C allows these modules to be used in equipment of various climatic designs, and the sealing filling provides reliable protection from external influences and eliminates damage to internal components caused by vibration or ingress of dirt, moisture or salt mist. Pin terminals provide installation of modules on a printed circuit board or volumetric installation.

The failure time in the typical mode is 2,400,000 hours. The service life is 5 years.

Technical parameters

The VFD series filters are optimized for joint use with DC/DC converters from VOLTBRICKS of the VDRI series.
More detailed technical specifications are provided in the Specifications on the product page.
