RDC1-0014 24V, Built-in DC/DC Converter, Input 28-60V, Output 24V/2A, LM2596HV
Images are for reference only,
see technical documentation
see technical documentation
23 pcs. from the central warehouse, term 11 days
3 940 ֏
3 080 ֏
from 2 pcs. —
2 970 ֏
1 pcs.
amount of 3 080 ֏
Description
Technical specifications:
- Input voltage: 26...60V;- Output voltage: 24V;
- Output current, not more than 2.5A;
- Output current limit: 3A;
- Conversion frequency: 150kHz;
- Power-on control: 0/Vin;
- Reverse polarity protection: none;
- Module dimensions: 35x20x12mm;
Electrical diagram

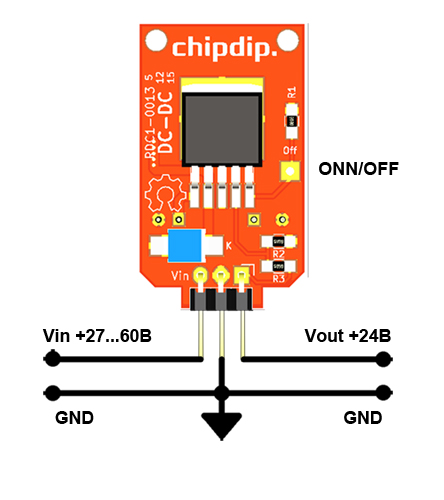

Connection diagram
Technical parameters
| Weight, g | 18.4 |
Technical documentation
Datasheet LM2596HV (HTC)
pdf, 269 КБ
KiCad project RDC1-0014
zip, 65 КБ
