RDC1-0014 5V, Embedded DC/DC Converter, Input 6-60V, Output 5V/3A, LM2596HV

Images are for reference only,
see technical documentation

SKU

9000656957

Brand

ChipDipDac

Weight, g

18.4

Datasheet LM2596HV (HTC)

pdf, 269 КБ

All documents

3 pcs. from stock Yerevan, Today

37 pcs. from the central warehouse, term 11 days

3 940 ֏

3 080 ֏

from 2 pcs. — 2 970 ֏

1 pcs. amount of 3 080 ֏

Description

Technical specifications:

- Input voltage: 7...60V;
- Output voltage: 5V;
- Output current, not more than: 3A;
- Limitation of the output current: 3...4A;
- Conversion frequency: 150kHz;
- Power-on control: 0/Vin;
- Reverse polarity protection: none;
- Module dimensions: 35x20x12mm;

Electrical diagram

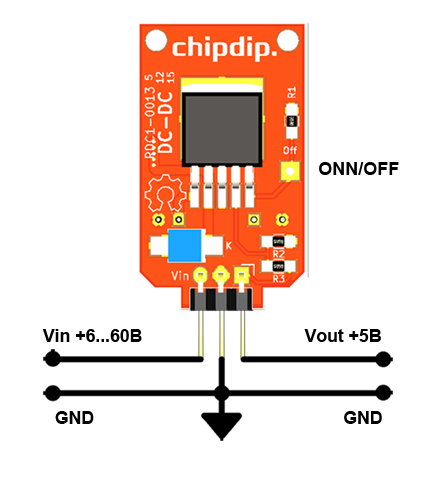

Connection diagram
